Alsavo pool heat pumps adopt the cutting-edge INVERPAC full inverter technology,
while INVERPAC is designed to reduce energy consumption and ensure optimal performance,
delivering the most energy-efficient heating solution for Pool&SPA.

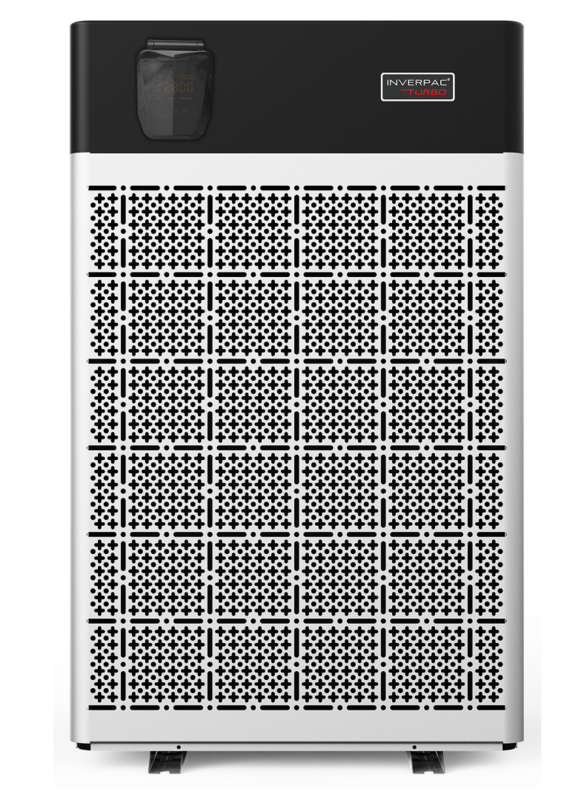

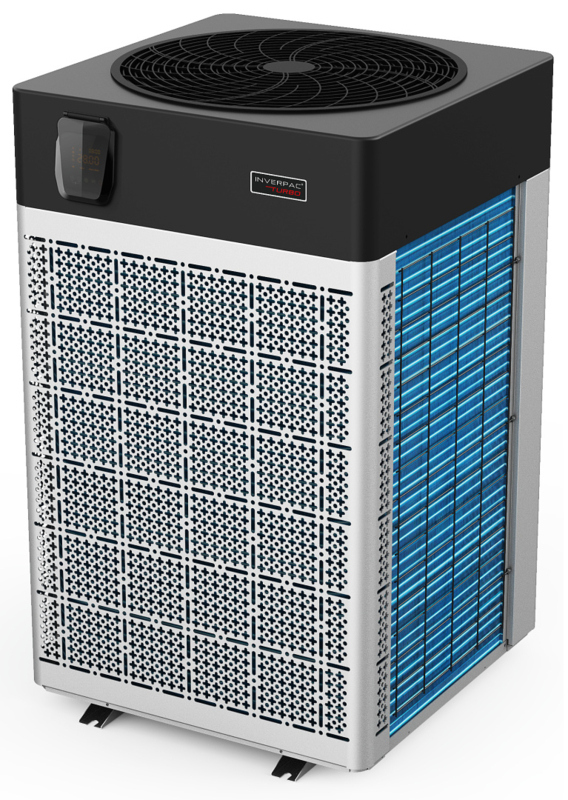

INVERPAC Vertical Full inverter vertical swimming pool heat pump——————— Compressor and fan with variable speed will provide the most suitable power and optimize the best possible efficiency to prioritize energy savings. A range of heat pumps from 11 to 30KW, ideal for heating your swimming pool, high performance of a high level of design for the comfort of use in everyday life. Developed to operate at negative temperatures up to -12°C, it is a 4-season model.
|
Aluminium alloy, chemically resistant and ultra-strength corrosion resistance. ASA cover, anti-UV resistance and thermal stability. | Energy-efficiency, Low energy consumption C.O.P up to 16, save more bills for you.
| Whisper quiet Sound pressure down to 39 dB(A), very friendly to your neighbour.
|
Touch to control Easy to set up the desired temperature, time and check data. |
|
4 -season operation Auto-defrost Turo fast heating with extra 20% capacity, optimized for the cold season down to -12℃. | INVERPAC VERTICAL (R32, Heating&Cooling with compressor defrosting, Aluminum + ASA cabinet, CE Standard) | | Poolclub model | | INVERPAC V14 | INVERPAC V16 | INVERPAC V20 | INVERPAC V25 | INVERPAC V30 | INVERPAC V25T | INVERPAC V30T | Advised pool volume
